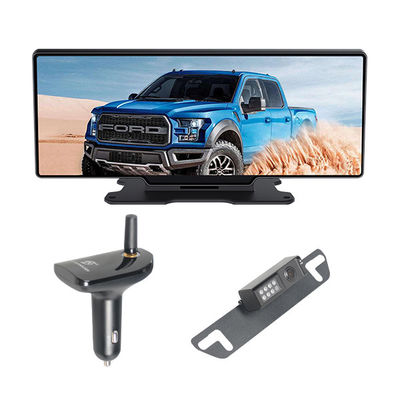

Wireless Truck Rearview Camera Car Charger AHD Receiver 12 Inch Touch Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | CE,FCC,ROHS |
| Model Number: | FX11GL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Screen Size: | 12 Inch | Video Recording: | YES |
|---|---|---|---|
| Video Format: | MPEG4 | Power Supply Of Mirror: | 4.8V—5.1V |
| Video Codec Performance: | H.264/ Resolution 2560*1440@30fps | Channel: | 2 Channels Max |
| Power Supply Of Receiver: | DC 10-30V | Size Of Mirror: | 240mm X 110mm X 50mm |
| High Light: | Wireless FHSS Truck Rearview Camera,AHD Receiver Truck Rearview Camera,FHSS truck rear view camera wireless |
||
Product Description
12 Inch Touch Screen Wireless Truck Rearview Camera Car Charger AHD Receiver
Features:
- First item 12 Inch AHD digital wireless streaming rear view mirror DVR
- HD resolution with 1600*600 of 12 Inch IPS big touch screen and Anti-glare screen.
- Camera:the power cord use the flat wire method, make installation simple and convenient and save space.
-
Mirror come with front camera,support front and rear cameras recording simultaneously.
-
Outer appearance of Receiver is car-charger integrated design,with data line 3.5M,apply to different type of vehicles for wiring.high compatibility.
- Wireless signal system:no need to install with complex wiring.it's totally DIY installation.
- Installation of Receiver: Insert the FX901R parts into the car cigarette lighter socket,it can get electrity from cigarette lighter socket
- Car-charger designed receiver,built-in wireless digital wireless,output with 1080P hight definition image.
Specification:
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
Mirror
| Display | 11.66 inch/1920*380 MIPI port IPS Screen |
| Video codec performance | H.264/ Resolution 2560*1440@30fps |
| Operational memory | 256MB DDR3L(2K+1080P+ADAS&BSD) |
| Sensor | 1/2.8 CMOS 140°Lens |
| Rear Camera | 4-segment 2.5mm earphone plug input 1080P AHD |
| Power Supply | 4.8V—5.1V |
| Electric current | 1.2A-2A |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C |
| Size | 240mm x 110mm x 50mm |
| Weight | 470g |
Competitive Advantage:
1. Waterproof, high definition.
2. Easy to install, more convenient.
3. Top Selling, Cheap price, high quality, best service .quick reply.
4. Support DVR function,record what is happening behind the vehicle when driving on the road.
5. Strong Wireless signal systems even in high speeds.
Application:
The best choices of dash camera system for Small bridge car .pickup ,SUV,RV.Digital signal transmission, equipped with high-quality image sensor to make picture clear and transparent, and the image is clear and detailed.
