Night Vision 10m Car Rear View Camera Truck DVR 7 Inch IPS Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX14L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Material: | Metal | Latency: | Less Than 200ms |
|---|---|---|---|
| Brand: | TX | Night Vision Distance: | 8-10m |
| Image Device: | 1/2.7" COMS (HD) | Waterproof Level: | IP69k |
| Operating Temperature: | -20℃--70℃，RH85% MAX | Storage Temperature: | -30℃--80℃，RH85% MAX |
| Operating Frequency: | 2.4GHz~2.4835GHz | Monitor Resolution: | 1024 X 3(RGB) X 600 |
| High Light: | Night Vision 10m Car Rear View Camera,IP69k Car Rear View Camera,IP69k Backup Camera For Truck |
||
Product Description
Night Vision 10m Car Rear View Camera Truck DVR 7 Inch IPS Screen
Wireless Car Rear View Camera Waterproof 7 Inch IPS Screen DVR Night Vision 10m
Specification:
Monitor
| Screen Size | 7 inch Color Monitor |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Resolution | 1024 x 3(RGB) x 600 |
| Video Format | MP4 |
| Built-in DVR recording | Holding up to 16G/32G/64G/128G SD Cards |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Transmission Distance | 1650ft |
| Power consumption | Max:6W |
| Power Supply | DC 12-24V |
| Operating temperature | -20℃--70℃ |
| Storage temperature | -30℃--80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Cameras(FX301T+FX302T+FX303T)
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
FX922T(Smalllest Camera)
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. 7 Inch RV 4 cameras 720P digital HD wireless DVR set.
2. With 6 highlight LED Lamp. one rear camera of Warning Light and two sides of left and right width light, With silicone mold.
3. Support multi-channel camera display, can support up to 4 channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².
5. 720P H.264 HD DVR Video recording ,support playback online.
6. Self-defining reversing line setting,
7. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 26DBM
8. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.
9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.
10. The FX922T camera power cord use flat wire design, and use for driving wireless rear-view recorder by connecting the license plate light.(Can install car license plate and RV side door)

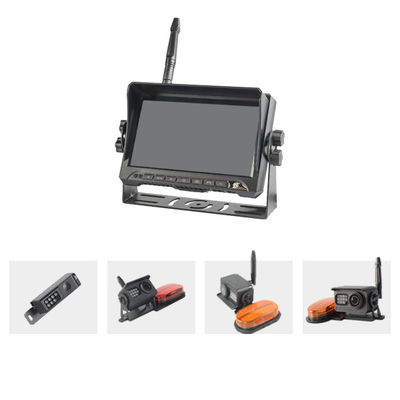

11. Combine content: one monitor with four cameras(FX909R+FX301T+FX302T+FX303T+FX922T)
12. Apply to vehicles: RV,Trailer RV
