Wireless Digital Truck Rearview Camera Observation Mirror Dashcam
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX13L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Model Number: | FX13L | Brand: | TX |
|---|---|---|---|
| Built-in DVR: | 16G/32G/64G/128G SD Cards | Storage Temperature: | -30℃~+80℃ |
| Operating Temperature: | -20℃~+70℃ | Operating Frequency: | 2.4GHz~2.4835GHz |
| Screen Size: | 7 Inch Color Monitor | Power Supply: | DC+12V |
| Transmission Power: | 26dB | Weight: | 430g |
| High Light: | 26dB Truck Rearview Camera,DC12V Truck Rearview Camera,26dB Digital Backup Camera |
||
Product Description
Wireless Digital Truck Rearview Camera Observation Mirror Dashcam
Wireless Digital Backup Cameras 7 Inch Color Monitor Observation Mirror Dashcam
Specification:
Monitor
| Screen Size | 7 inch |
| Video Recording | Yes |
| SD Card | Max.128G |
| Resolution | 1024*3(RGB)*600 |
| Video Format | MP4 |
| Adjustable Parking Line | Yes |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Split Mode | Yes |
| Power Supply | DC 12-24V |
| Operating Frequency | 2.4GHz~2.4835GHz |
| Transmission Distance | 1650ft |
| Power Consumption | Max:6W |
| Built-in DVR | Holding up to 16G/32G/64G/128G SD cards |
| Operating Temperature | ﹣20℃~﹢70℃ |
| Storage Temperature | ﹣30℃~﹢80℃ |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
| Size | 214*59*85mm |
Features:
1. 7 inch RV three-channel 720P digital high-definition wireless DVR set.
2. Camera With 6 highlight LED Lamp. one rear camera of Warning Light and two sides of left and right width light, With silicone mold.
3. Multiple split view mode available on the 7" IPS screen and displays up to 4 cameras views
4. 7 inch IPS screen 1024*600 resolution 900cd/ m²,HD highlight to make night vision more easy observation and display.
5. 720P H.264 HD DVR Video recording ,support playback online.have evidence to check important things happening.

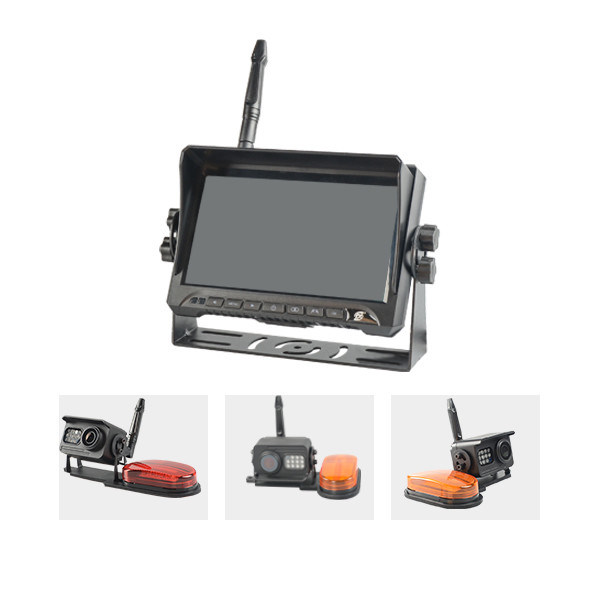

6. Combine content:one monitor with 3 cameras(FX909R+FX301T+FX302T+FX303T)
7. Apply to vehicles: RV, Trailer RV.
8. FCC,CE,ROHS certificate available.
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.
- If smoke or burning smell is detected, please disconnect the power immediately.
