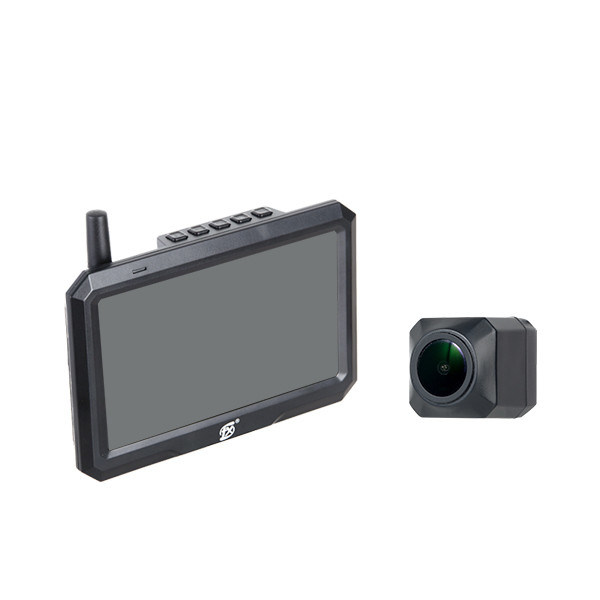

IP68 Waterproof Rear View Camera 5 Inch Color Screen Super Signal System
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Waterproof: | IP68 | Model Number: | FX505 |
|---|---|---|---|
| Camera Size:: | 27*25*25mm | LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800(H)x480(V) | Brightness: | 500cd/m |
| Colour: | Black | Application: | Car,pickup,SUV |
| High Light: | IP68 waterproof rear view camera,NTSC waterproof rear view camera,SUV waterproof backup camera monitor |
||
Product Description
5 Inch Color Screen IP68 Waterproof Rearview Camera Super Signal System
Specification:
Camera
| IP Class(Protection type): | IP68,waterproof |
| Image Sensor: | 1/3” HD CMOS |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| TV System: | NTSC/PAL |
| Resolution: | 550TV Line |
| Minimum Illumination: | 0 Lux[IR ON] |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| View angle: | 110° |
| Power Supply: | DC+9V~+30V(Supporting power line voltage range) |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 27*25*25mm |
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| RX Sensitivity: | -90dBm@10%PER |
| Resolution: | 800(H)x480(V) |
| Brightness: | 500cd/m |
| TV System: | PAL/NTSC |
| Power Supply: | DC+9V~+30V |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 132.5x89.5x22.5mm |
Features:
1. Small camera:27*25*25mm,easy to install,come with 2.4G wireless signal system.
2. Protection type is IP68 waterproof, Working temperature is from -4°F to 149°F, can be drived at raining day and extreme weather.
3. Different installation for cameras,match with two brackets.
4. Power on response time is 1.5MS, latency time is 70 ms,video will be appeared quickly on monitor.
5. Two position to install monitor: located on dashboard or on windshield.
6. Install separately between the monitor and camera,when need to connect camera, just need to pair the code.
7. Transmissor power is 16DBM,RX sensitivity is -90DBM.
8. Display way of monitor: Mirror, normal image and up, down, left, right image flip.
Quality Assurance
All parts will be tested quality before making shipment,quality testing text including Waterproof test,Temperature test,Night vision test,Aging test.
Competitive advantage
1. Stable quality(CE,FCC,ROHS)
2. Most competitive price
3. On time delivery
4. All products must test one by one waterproof resistance and high/low temperature resistance
5. Warranty: 12 months
6. OEM,ODM welcome
