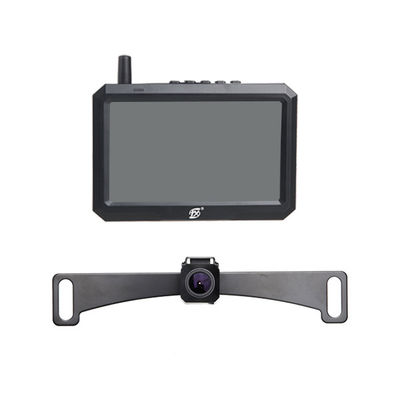

5 Inch Color Screen IP68 WIFI Rearview Camera Super Signal Sytem
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX505 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Waterproof: | IP68 | Model Number: | FX505 |
|---|---|---|---|
| Operating Temperature: | -20°C~+70°C | Storage Temperature: | -30°C~+80°C |
| Camera Size:: | 27*25*25mm | LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800(H)x480(V) | Brightness: | 500cd/m |
| TV System: | PAL/NTSC | Image Sensor: | 1/3"HD CMOS |
| High Light: | IP68 WIFI Rearview Camera,IP68 WIFI Reversing Camera,ROHS WIFI Rearview Camera |
||
Product Description
5 Inch Color Screen IP68 WIFI Rearview Camera Super Signal Sytem
WIFI Rearview Smallest Camera For Reversing 5" Color Screen Super Signal Sytem
Specification:
Camera
| IP Class(Protection type): | IP68,waterproof |
| Image Sensor: | 1/3” HD CMOS |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| TV System: | NTSC/PAL |
| Resolution: | 550TV Line |
| Minimum Illumination: | 0 Lux[IR ON] |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| View angle: | 110° |
| Power Supply: | DC+9V~+30V(Supporting power line voltage range) |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 27*25*25mm |
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| Transmitted Power: | 16+-1dBm@Maximum Power Setting |
| RX Sensitivity: | -90dBm@10%PER |
| Resolution: | 800(H)x480(V) |
| Brightness: | 500cd/m |
| TV System: | PAL/NTSC |
| Power Supply: | DC+9V~+30V |
| Operating temperature: | -20°C~+70°C |
| Storage temperature: | -30°C~+80°C |
| Size: | 132.5x89.5x22.5mm |
Features:
1. The smallest 2.4G wireless rear view integrated camera in world, volume is 27*25*25mm
2. Backup camera is designed with IP68 waterproof, Working temperature: -4°F-149°F, no need to worry driving at raining day and extreme weather.
3. Easy to install: two way of bracket to install camera, more convenient
4. Camera come with good low night vision:110 degree horizontal angle. more safety to drive at darkness and daytime. Illumination can be as low as 0.1LUX.
5. 5 Inch TFT color screen, brightness: 500cd/m Resolution is 800*480
6. Power on response time is 1.5MS, latency time is 70 ms, video will be appeared quickly on monitor.
7. Two position to install monitor: located on dashboard or on windshield. Install separately, when need to connect camera, just pair the code.
8. Transmissor prow is 16DBM,RX sensitivity is -90DBM
9. Monitor has variety of display way: Mirror, normal image and up, down, left, right image flip for more safe parking.
10. Product context:FX505 set
Quality Assurance
1. Waterproof test
2. Temperature test
3. Night vision test
4. Aging test
Competitive advantage
1. Stable quality(CE,FCC,ROHS)
2. Most competitive price
3. On time delivery
4. All products must test one by one waterproof resistance and high/low temperature resistance
5. Warranty: 12 months
6. OEM,ODM welcome
