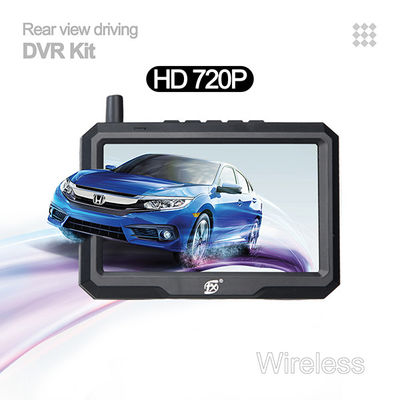

5 Inch Monitor Wireless Rearview Camera Signal System For Recording
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Screen Size: | 5 Inch Color Screen | Material: | Metal |
|---|---|---|---|
| Warranty: | 12 Months | Transmission Distance(barrier Free): | 300m(984ft) |
| Transmission Power: | 23dB | Night Vision Distance: | 4-5m |
| Camera Weight: | 90g | Resolution: | 800*480 |
| High Light: | 5inch Monitor Wireless Rearview Camera,300m Wireless Rearview Camera,300m Wifi Rear View Camera |
||
Product Description
5 Inch Monitor Wireless Rearview Camera Signal System For Recording
Backup Camera 5 Inch Monitor Wireless Signal System For Car Driving/Recording
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. First 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. Resolution: 800*480 Brightness: 1000cd/M.
3. 720P H.264 HD DVR Recording ,support 128G SD Card max,support playback online.
4. Support split two-way display and video on the same screen.
5. Camera power cord designed with flat line, power by connecting license plate light, can work for rear recording a long time
6. Transmission power is 23DBM,camera built-in antenna.
7. 120 degree full-glass wide angle lens, 200W(1080P) Pixel sensor,High definition-can help avoid incidents and accidents abrasion effectively.
8. IP69K waterproof.can work at raining day and extreme weather:-20℃--70℃
9. Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.
10. Apply to Vehicles: mini car, pickup, SUV,RV, Trailer RV.
Competitive advantage:
1. Stable quality(CE,FCC,ROHS)
2. Most competitive price
3. On time delivery
4. All products must test one by one waterproof resistance and high/low temperature resistance
5. Warranty: 12 months
6. OEM,ODM welcome
Notices:
- Please use this product within the specified voltage range.
- Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.
- If smoke or burning smell is detected, please disconnect the power immediately.
