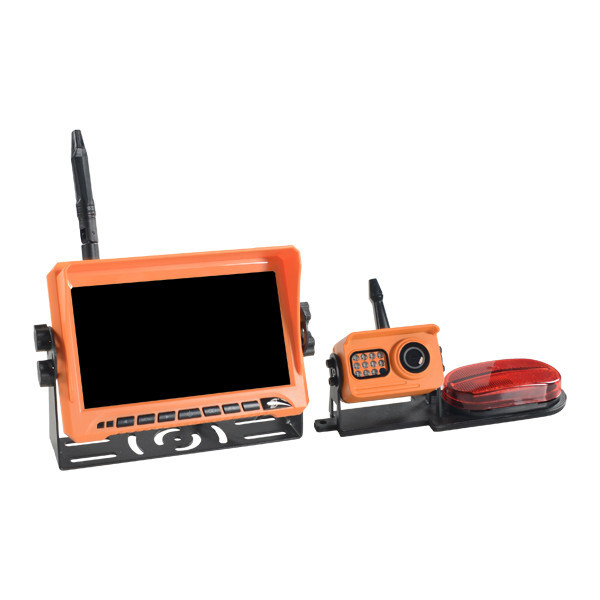

1080P Truck Backup Camera Monitor System Backup Night Vision 33ft
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | CE,FCC,ROHS |
| Model Number: | FX11AL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Screen Size: | 7 Inch | Viewing Angle: | 120° |
|---|---|---|---|
| Type: | Backup Camera System | Warranty: | 12Months |
| Audio: | Without Microphone | Resolution: | 1024 X 3(RGB) X 600 |
| Whatproof: | IP69K | Voltage: | DC 12-24V |
| High Light: | 1080P Backup Camera Monitor,Night Vision 33ft Backup Camera Monitor,Night Vision 33ft Truck Monitoring System |
||
Product Description
1080P Truck Backup Camera Monitor System Backup Night Vision 33ft
Truck Monitoring System Wireless Night Vision 32ft Backup Rearview 1080P Camera
Product Features:
1. 7 Inch RV 720P digital HD wireless DVR set.
2. Camera with 6 highlight LED Warning Light,and silicone mold.
3. Support multi-channel camera display, can support up to 4 channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².
5. 720P H.264 HD DVR Video recording ,support playback online.
6. Self-defining reversing line setting,
7. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 26DBM
8. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.
9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.
10. Combine content:FX909AR+FX303AT)
11. Apply to vehicles: RV, Trailer RV
12. Orange color,unique appearance color,which impoves brand recognition.
Quality Assurance
1. Waterproof test
2. Temperature test
3. Night vision test
4. Aging test
Specification
Montior
| Screen Size | 7 inch |
| Video Recording | Yes |
| Resolution | 1024 x 3(RGB) x 600 |
| SD Card | Max.128G |
| Video Format | MP4 |
| Adjustable Parking Line | Yes |
| Brightness | 900 cd/m² |
| Channel | 4 channels Max |
| Split Mode | Yes |
| Power Supply | DC 12-24V |
| Outer Dimension | 184mm(W)X129mm(H)X26mm(D) |
Camera
| Viewing Angle | 120° |
| Size | 214*59*85mm |
| Image Device | 1/2.7" COMS (HD) |
| SMART IR-CU | 650nm Day/850nm Night Auto |
| Waterproof rating level | IP69k |
| Transmision Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
Service
1. Efficient after-sales service,provide solutions for your problems within 24 hours;
2. OEM&ODM:we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability,we can provide certificates of products such as CE,FCC,ROHS;
Applications:
Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels IR Night Vision and so on.
FAQ
Q1.What is the MOQ?
A: 1~100 pieces according to the model.
Q2. What is the payment terms?
A: T/T,L/C at sight
Q3. What is the warranty time?
A:Usually 12 months from the date of purchase, it also depends on the type of the products.
Q4. What is the lead time?
A: Usually 3~7 days for sample order, for bulk orders, it depends on the order quantity.
