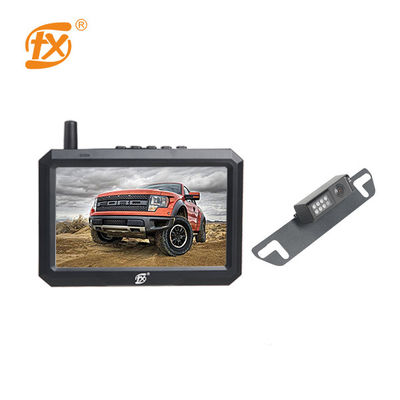

Vehicle 1080P DVR Reverse Camera 5 Inch Color Screen For Driving Recording

Vehicle 1080P DVR Reverse Camera 5 Inch Color Screen For Driving Recording

Product Details:

Place of Origin: China
Brand Name: TX
Certification: FCC CE ROHS
Model Number: FX11F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: color box
Delivery Time: 5-8 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

Screen Size: 5 Inch Color Screen Transmission Power: 23dB
Video Compression: H.264 Transmitting Distance: 984ft Line Of Sight
Waterproof Rating: IP69K Power Supply:: DC+12V~+24V
Resolution: 800*480 Brightness: 1000 Cd/m²
High Light:

Color Screen DVR Reverse Camera

,

23dB DVR Reverse Camera

,

IP69K backup camera DVR

Product Description

Vehicle 1080P DVR Reverse Camera 5 Inch Color Screen For Driving Recording





Specification:



Monitor



LCD Size: 5 Inch Color Monitor
Resolution: 800 x 3(RGB)x 480
Brightness: 1000 cd/m
TV System: PAL/NTSC
Transmitted Power: 24±1dBm@Max
Operating Frequency: 2.4GHz~2.4835GHz
RX Sensitivity -85dBm@10%PER
Spread Spectrum FHSS
Video Compression H.264
Latency 160ms
Transmitting Distance 984ft line of sight
TF Card Min.8G Max.128G
Power Supply: DC+12V~+24V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃
Size 132.5x89.5x22.5mm



Camera



Viewing Angle 160°
AGC Auto
BLC Auto
White Balance Auto
Operation Frequency 2.4GHz--2.4835GHz
Transmission Distance(barrier free) 300m(984ft)
Transmission Power 23dB
Latency Less 200ms
RF Bit Rate 12Mbps
Minimum Illumination 0Lux
Night vision distance 4-5m
Operating power  DC 10-18V
Waterproof rating IP69K
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 85x28x27.5mm
Weight 90g



Features:



1. First item 5 Inch 720P Dual-channel digital high-definition wireless DVR set.

2. HD image from Monitor,camera can transmit 1080P pictures to the monitor.

3. Resolution of monitor is  800*480,and brightness is 1000cd/M.

4. 720P H.264 HD DVR Recording,128G TF Card max.support the video playback online.video format is MP4.

5. Support split two-way display and video on the same screen.it can support 2 channels max.

6. Viewing angle of camera is 160 degree,it can be used for reversing or driving.guide line can be adjustable.

7. Wireless signal system,easy to install,camera and monitor is independent,just need to connect the power.

8. Camera just need to connect the license plate light for power,or install on the side door of the RV.



Application:



Highly recommend under 33ft vehicle for reversing, such as Truck, Car, Pickup, SUV, Mini Van.
