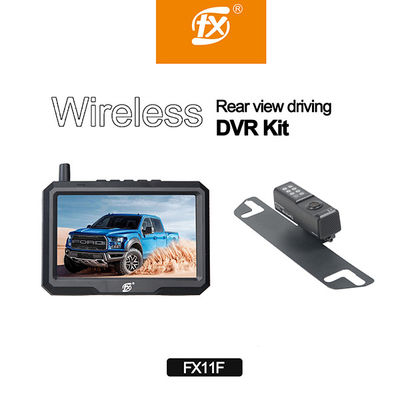

Wireless 5 Inch 300m 984ft DVR Backup Camera DVR Recording Kit
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Brand: | TX | Material: | Metal |
|---|---|---|---|
| Warranty: | 12 Months | White Balance: | Auto |
| Transmission Distance(barrier Free): | 300m(984ft) | Latency: | Less Than 200ms |
| Spread Spectrum: | FHSS | Waterproof Rating: | IP69K |
| Screen Size: | 5 Inch Color Screen | Resolution: | 800*480 |
| High Light: | 300m DVR Backup Camera,984ft DVR Backup Camera,984ft Wireless Reverse Backup Camera |
||
Product Description
Wireless 5 Inch 300m 984ft DVR Backup Camera DVR Recording Kit
HD 1080P Wireless Reverse Backup Camera 5 Inch IPS Monitor DVR Recording KIT
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 160° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 4-5m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Features:
1. First 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. Resolution: 800*480 Brightness: 1000cd/M.6 pcs LEDs highlight lamp,better to help reversing at night
3. 720P H.264 HD DVR Recording ,support playback online.
4. Support split two-way display and video on the same screen
5. Two way of installation for camera:1.on front and back License plate frame 2.side door of RV,
6. Adjustable reversing line:more easy to reverse.
6. Camera power cord designed with flat line, power by connecting license plate light, can work for rear recording a long time
7. Transmission power is 26DBM,transmission distance:1650ft. camera built-in antenna.

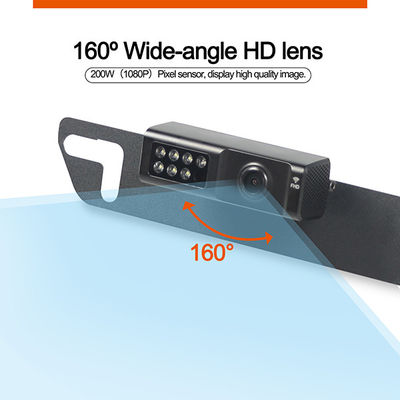

8. 120 degree full-glass wide angle lens, 200W(1080P) Pixel sensor, IP69K waterproof.
