12 Inch Touch Screen DVR Reverse Camera Wireless Rearview Mirror AHD Receiver
Product Details:
Place of Origin: | China |
Brand Name: | TX |
Certification: | CE,FCC,ROHS |
Model Number: | FX11GL |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | color box |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 1000pcs/week |
Detail Information |
|||
Screen Size: | 12 Inch | Video Recording: | YES |
---|---|---|---|
Electric Current: | 1.2A-2A | Video Codec Performance: | H.264/ Resolution 2560*1440@30fps |
Channel: | 2 Channels Max | Material: | Metal |
Power Supply Of Receiver: | DC5V | Outer Size: | 240mm X 110mm X 50mm |
High Light: | Touch Screen DVR Reverse Camera,waterproof housing DVR Reverse Camera,DVR FHSS Wireless Reverse Camera |
Product Description
12 Inch Touch Screen DVR Wireless Reverse Camera Rearview Mirror AHD Receiver
Features:
- First item 12 Inch AHD digital wireless streaming rear view mirror DVR
- HD resolution with 1600*600 of 12 Inch IPS big touch screen and Anti-glare screen.
- Camera:the power cord use the flat wire method, make installation simple and convenient and save space.
-
IP69K waterproof housing camera, Waterproof, dustproof and shockproof design,with 160° wide viewing angle.
-
Outer appearance of Receiver is car-charger integrated design,with data line 3.5M,apply to different type of vehicles for wiring.high compatibility.
-
The image appears on the quick connection when booting.

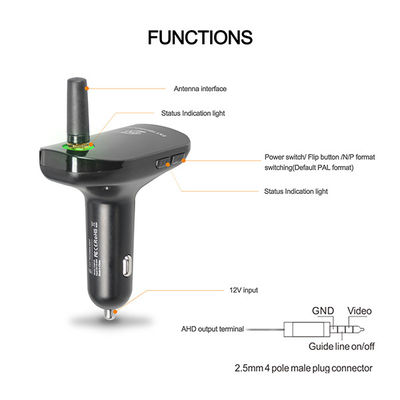

- Installation of Receiver: Insert the FX901R parts into the car cigarette lighter socket,it can get electrity from cigarette lighter socket
- Button function of Receiver:Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting.
- Products with DVR function,it can make the process of driving more safety,even in the rainy with poor visibility.
Specification:
Camera
Image Sensor | 1/2.7’’COMS HD |
Viewing Angle | 160° |
AGC | Auto |
BLC | Auto |
White Balance | Auto |
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Distance(barrier free) | 300m(984ft) |
Transmission Power | 23dB |
Latency | Less 200ms |
Spread Spectrum | FHSS |
RF Bit Rate | 12Mbps |
Minimum Illumination | 0Lux |
Night vision distance | 4-5m |
Power supply | DC 10-18V |
Waterproof rating | IP69K |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Size | 85x28x27.5mm |
Weight | 90g |
Receiver
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Power | 23dB |
RX Sensitivity | -85dB |
RF Bit Rate | 12Mbps |
Spread Spectrum | FHSS |
Video output format | 1080p |
Coding Decompression method | H.264 |
Power Supply | DC 10-30V |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Size | 92x68x43mm |
Weight | 185g |
Mirror
Display | 11.66 inch/1920*380 MIPI port IPS Screen |
Video codec performance | H.264/ Resolution 2560*1440@30fps |
Operational memory | 256MB DDR3L(2K+1080P+ADAS&BSD) |
Sensor | 1/2.8 CMOS 140°Lens |
Rear Camera | 4-segment 2.5mm earphone plug input 1080P AHD |
Power Supply | 4.8V—5.1V |
Electric current | 1.2A-2A |
Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C |
Size | 240mm x 110mm x 50mm |
Weight | 470g |
Application:
The best choices of dash camera system for Small bridge car .pickup ,SUV,RV.Digital signal transmission, equipped with high-quality image sensor to make picture clear and transparent, and the image is clear and detailed.
