1080P DVR Reverse Camera 5 Inch Wireless Monitor IP69K Support 2 Channels
Product Details:
Place of Origin: | China |
Brand Name: | TX |
Certification: | FCC CE ROHS |
Model Number: | FX12F |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | color box |
Delivery Time: | 5-8 days |
Payment Terms: | Western Union, MoneyGram, L/C, T/T |
Supply Ability: | 1000pcs/week |
Detail Information |
|||
Viewing Angle: | 160° | Video Compression: | H.264 |
---|---|---|---|
RX Sensitivity: | -85dBm@10%PER | Latency: | 160ms |
Screen Size: | 5 Inch Color Screen | Operating Temperature: | -20℃--70℃,RH85% MAX |
Storage Temperature: | -30℃--80℃,RH85% MAX | Power Supply: | DC+12V~+24V |
High Light: | Wireless Monitor DVR Reverse Camera,1080P DVR Reverse Camera,IP69K Wireless Monitor Camera |
Product Description
5 Inch Wireless Monitor IP69K 1080P DVR Reverse Camera Support 2 Channels
Specification:
Monitor
LCD Size: | 5 Inch Color Monitor |
Resolution: | 800 x 3(RGB)x 480 |
Brightness: | 1000 cd/m |
TV System: | PAL/NTSC |
Transmitted Power: | 24±1dBm@Max |
Operating Frequency: | 2.4GHz~2.4835GHz |
RX Sensitivity | -85dBm@10%PER |
Spread Spectrum | FHSS |
Video Compression | H.264 |
Latency | 160ms |
Transmitting Distance | 984ft line of sight |
TF Card | Min.8G Max.128G |
Power Supply: | DC+12V~+24V |
Operating temperature: | -20℃~+70℃ |
Storage temperature: | -30℃~+80℃ |
Size | 132.5x89.5x22.5mm |
Camera
Image Sensor | 1/2.7’’COMS HD |
Viewing Angle | 160° |
AGC | Auto |
BLC | Auto |
White Balance | Auto |
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Distance(barrier free) | 300m(984ft) |
Transmission Power | 23dB |
Latency | Less 200ms |
Spread Spectrum | FHSS |
RF Bit Rate | 12Mbps |
Minimum Illumination | 0Lux |
Night vision distance | 4-5m |
Power supply | DC 10-18V |
Waterproof rating | IP69K |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Size | 85x28x27.5mm |
Weight | 90g |
Features:
1. First 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. Resolution: 800*480 Brightness: 1000cd/M Operating temperature:-20℃--70℃
3. Camera is recommended to install on front and back License plate frame or side door of RV, guid line can be adjusted.
4. Support split two-way display and video on the same screen.

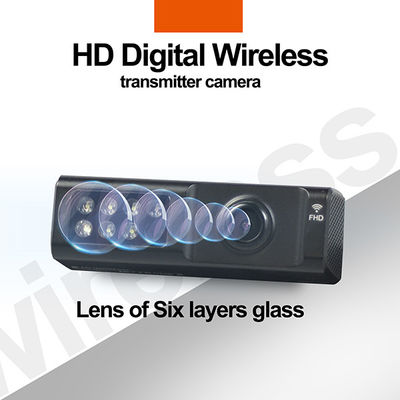

5. Camera built-in Digital HD 2.4GHz wireless transmitter.
6. Camera with 160 degree of view angle,can be used for reversing and driving.
7. The power cord use the flat wire method, make installation simple and convenient and save space.
8. High Definition Lens,2 mega of Pixel. 1/2.7’’COMS sensor, more clearly on observation.
Warranty and service:
You(as the end user)get a 12 months guarantee from the date of purchase.
During the warranty period, if there is damage, repair or other problems, please contact the point of sale or qualified experts.
The general warranty terms apply to defects in production and materials. Please return the defective product to the point of sale.
