10" Antiglare Screen Reverse Mirror Dash Cam Backup Camera Car Charger Receiver
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11G3H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Video Resolution: | 1080P | Operation Frequency: | 2.4GHz--2.4835GHz |
|---|---|---|---|
| Transmission Distance(barrier Free): | 500m(1650ft) | Channel: | 2 Channels Max |
| Transmission Power: | 26dB | Camera Resolution: | Digital 1080P |
| Application: | RV/Trailer RV | Rear View Mirror: | 10 Inch |
| High Light: | Antiglare Mirror Dash Cam Backup Camera,Waterproof Mirror Dash Cam Backup Camera,FCC Car Charger Receiver |
||
Product Description
10" Anti-glare Screen Reverse Mirror Dash Cam Backup Camera Car Charger Receiver
Specification:
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC+12V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Weight | 430g |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
H10 Rear View Mirror
| Built-in image sensor | 2 Mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Features:

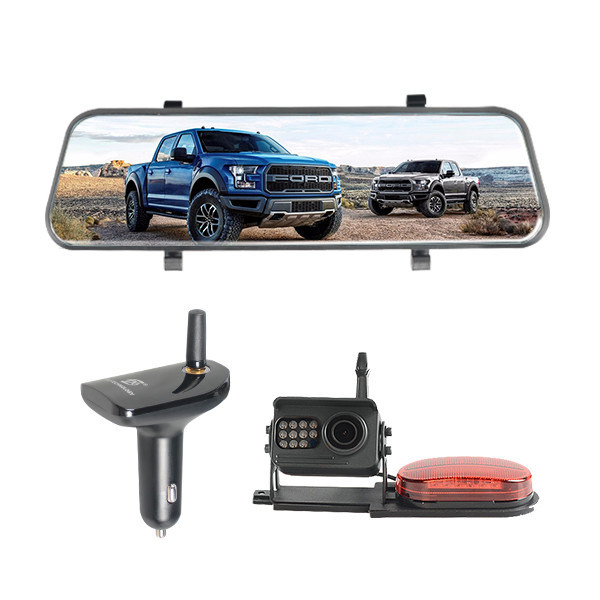

1. First item 10 Inch AHD digital wireless streaming media rear view mirror DVR.
2. Built-in Front digital wireless transmitter, support two cameras, Rear and Front image recording simultaneously.
3. Camera can be mounted as reversing and driving monitor,recording what is happening behind the vehicles when driving.

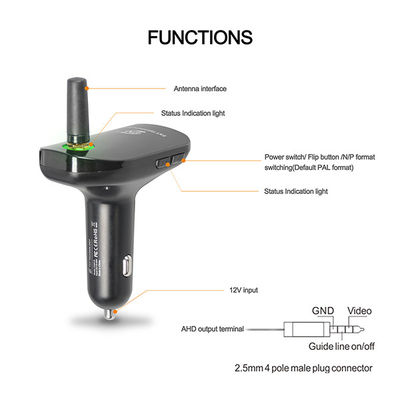

4. AHD 1080P car charger receiver,power supply is from 10V to 30V.suitable for mirror which with AHD input.
5. Resolution of receiver is 1080P. can transmit 1080P pictures to the mirror.
6. Receiver with USB5V power output,it can compatible with most streaming media rear view mirrors or screens which are with AHD signal input on the market (highly recommend).
Why choose you?
1. We provide wireless backup camera,installation only need 10 minutes,easy to install,and enjoy the fun of installation.
2. Have Professional QC to test parts before shipment. guarantee 100% good quality of parts before making shipment.
3. All of our backup cameras are mounted not only for reversing,but also for driving.
4. All parts are with wireless signal system and waterproof for all cameras.
