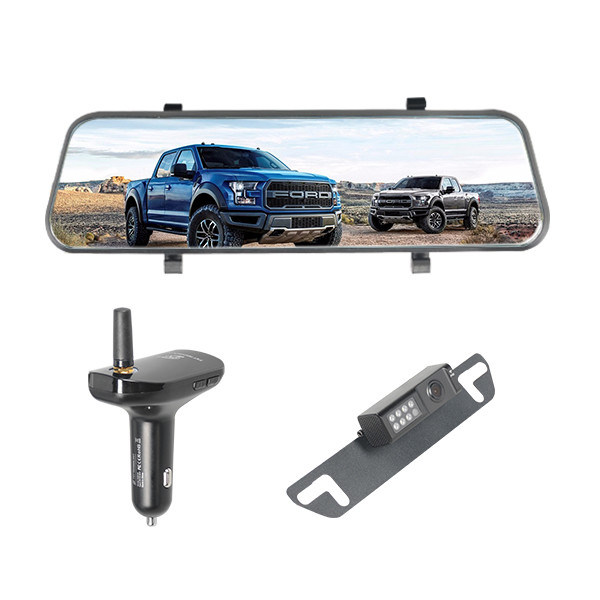

Rearview Mirror Dash Cam Backup Camera AHD Car Charger Receiver
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11GH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Image Sensor Of Camera: | 1/2.7" COMS(HD) | Latency: | Less Than 200ms |
|---|---|---|---|
| Waterproof Rating: | IP69K | Operating Temperature: | -20℃--70℃，RH85% MAX |
| Storage Temperature: | -30℃--80℃，RH85% MAX | Camera Size: | 85x28x27.5mm |
| Rearview Mirror Size: | 10 Inch | Weight Of Camera: | 90g |
| High Light: | FCC Mirror Dash Cam Backup Camera,85x28x27.5mm Mirror Dash Cam Backup Camera,FHSS Rearview Mirror Dash Cam |
||
Product Description
Rearview Mirror Dash Cam Backup Camera AHD Car Charger Receiver
Digital Rearview Mirror Dash Cam AHD Car-Charger Receiver Waterproof IP69K 1080P
Specification:
Camera
| Image Sensor | 1/2.7’’COMS HD |
| Viewing Angle | 120° |
| AGC | Auto |
| BLC | Auto |
| White Balance | Auto |
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Distance(barrier free) | 300m(984ft) |
| Transmission Power | 23dB |
| Latency | Less 200ms |
| Spread Spectrum | FHSS |
| RF Bit Rate | 12Mbps |
| Minimum Illumination | 0Lux |
| Night vision distance | 8-10m |
| Power supply | DC 10-18V |
| Waterproof rating | IP69K |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 85x28x27.5mm |
| Weight | 90g |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |
10 Inch Streaming media rearview mirror
| Built-in image sensor | 2 Mega pixel |
| Viewing angle | 130° |
| Video resolution | 1920*1080,S/30 frame |
| Storage compression method | MJPEG |
| Video format | MOV |
| Touch TP | Support, single touch |
| Storage Temperature | -20℃-70℃ |
| Operating Temperature | 0℃-50℃ |
| Operating humidity | 15-65%RH |
| SD Card | 128GB Micro SD Card[TF] |
| Standard Voltage | DC5V |
Features:
1. HD digital wireless and AHD Backup camera KIT for Mirror dash cam.
2. Easy to install and save space.
3. Brand-new and unique product design for camera and receiver.
4. Camera with 120º Wide-angle HD lens,200W(1080P)Pixel sensor, display high quality image.
5. Camera is Waterproof, dustproof and shockproof design.
6. Camera has 6 LEDs highlight light, Smart LED light can work for photosensitive and light complement automatically.
7. Steady feature of camera, can work long time for driving record monitoring.
8. Car-charger integrated machine of receiver, can power by connecting the car cigarette lighter directly. more convenient.
9. Receiver with AHD Signal output and 5V USB input, can compatible with most streaming media rearview mirrors or screens with AHD Signal output/USB input on the market, highly application.
10. 10 Inch rearview mirror,built-in1080P Front transmitter and AHD signal input, ultra-clear image. wide view angle 130º
11. 10 Inch rearview mirror, big touch screen, Anti-glare screen, built-in DVR, Rear and Front image recording.
12. 10 Inch rearview mirror can display two images, front and rear dual screens
13. Mainly used for Parking and Reversing monitoring.
Service:
1. Efficient after-sales service, provide solutions for your problems within 24 hours;
2. OEM&ODM: we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability: we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal T/T;
