12 Inch Touch Screen Dash Cam Backup Camera DVR Recorder AHD Receiver
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11G9L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Screen Resolution: | 1600*600 | Screen Size: | 12 Inch Big Touch Screen |
|---|---|---|---|
| Receiver Weight: | 185g | Transmission Power: | 26dB |
| Operating Temperature: | -20℃--70℃，RH85% MAX | Storage Temperature: | -30℃--80℃，RH85% MAX |
| Transmission Distance(barrier Free): | 1650ft | RF Bit Rate: | 12Mbps |
| Coding Decompression Method: | H.264 | Image Device: | 1/2.7" COMS (HD) |
| High Light: | 12inch Dash Cam Backup Camera,12Mbps Wireless Rearview Backup Camera,12Mbps Dash Cam Backup Camera |
||
Product Description

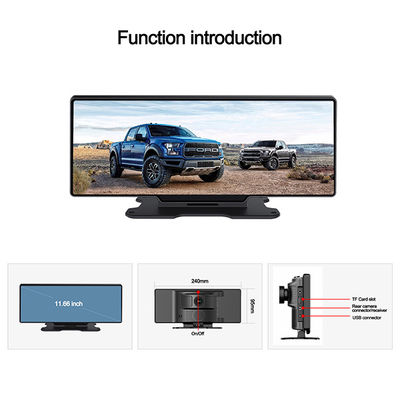

12 Inch Touch Screen Dash Cam Backup Camera DVR Recorder AHD Receiver
Wireless Rearview Backup Camera 12 Inch Touch Screen DVR Recorder AHD Receiver
Specification:
Camera
| Viewing Angle | 120° |
| Image Device | 1/2.7" COMS (HD) |
| IR Control | SMART IR-CUT 650nm Day/850nm Night Auto |
| Waterproof level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| Transmission Power | 26dB |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Spread Spectrum | FHSS |
| Minimum Illumination | 0Lux |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Size | 92x68x43mm |
| Weight | 185g |
Features:
1. First item 12 Inch AHD digital wireless streaming rear view mirror DVR.
2. 12 Inch 1600*600 IPS big touch screen and Anti-glare screen.Front camera with 1080P High definition Resolution, can get ultra-clear image.
3. Support front 2K and back 1080P dual recording, support playback online.support TF Card 128G Max.
4. 11pcs high power infrared light, IR-CUT smart switch, night vision distances can reach up to 10m.
5. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting .
6. Apply to Vehicles: Trucks, Van, Agricultural vehicles, Construction vehicles, RV, RV Trailer
7. FCC,CE,ROHS certificates available.
Warranty and service:
You (as the end user) get a 12-month guarantee from the date of purchase.
During the warranty period, if there is damage, repair or other problems, please contact the seller or qualified experts.
General warranties apply to defects in manufacture and materials. Please return the defective product to the seller.
To quickly process your warranty claim, you need to provide: A copy of the receipt showing the purchase date. Cause of claim (description of defect).
