• 7 Inch IPS Screen IP69K automotive rear view camera Recording Function
7 Inch IPS Screen IP69K automotive rear view camera Recording Function

7 Inch IPS Screen IP69K automotive rear view camera Recording Function

Product Details:

Place of Origin: China
Brand Name: TX
Certification: FCC CE ROHS
Model Number: FX11AL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: color box
Delivery Time: 5-8 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

Outer Case Color: Orange Lamp: 6 LED High Power Infrared Light
Material: Metal Image Device: 1/2.7" COMS (HD)
Waterproof Rating Level: IP69K Latency: Less Than 200ms
Power Supply: DC+12V IR Control: Smart IR-CUT 650nm Day/850nm Night Auto
Screen Size: 7 Inch Color Monitor Monitor Resolution: 1024 X 3(RGB) X 600
High Light:

IP69K Automotive Rear View Camera


DC12V Automotive Rear View Camera


IP69K Bluetooth Rear View Camera

Product Description

7 Inch IPS Screen IP69K Automotive Rear View Camera Recording Function


Truck Wireless Rearview Backup HD Camera 7 Inch IPS Screen Recording Function



Screen Size 7 inch Color Monitor
Operating Frequency 2.4GHz~2.4835GHz
Resolution 1024 x 3(RGB) x 600
Video Format MP4
Built-in DVR recording Holding up to 16G/32G/64G/128G SD Cards
Brightness 900 cd/m²
Channel 4 channels Max
Transmission Distance 1650ft
Power consumption Max:6W
Power Supply DC 12-24V
Operating temperature -20℃--70℃
Storage temperature -30℃--80℃
Outer Dimension 184mm(W)X129mm(H)X26mm(D)



Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC+12V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Weight 430g
Spread Spectrum FHSS
Minimum Illumination 0Lux

1. 7 Inch RV 720P digital HD wireless DVR set.
2. Camera With 6 highlight LED Warning Light and With silicone mold.
3. Support multi-channel camera display, can support up to 4 channel split screen.
4. 7 inch IPS screen 1024*600 resolution 900cd/ m².HD highlight to make night vision more easy observation and display.
5. 720P H.264 HD DVR Video recording ,support playback online.
6. Self-defining reversing line setting,make the sense of distance approach reality.
7. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 26DBM
8. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.
9. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.
10. Orange color, unique appearance color, which improves brand recognition.
11. Outer appearance use Innovative and unique model, and the key board use a light-transmitting design to make the touch more accurate at night.

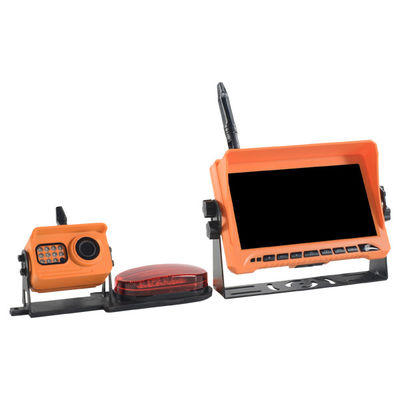

12. Combine content: one monitor with one camera(FX909AR+FX303AT)
Highly recommend vehicles over 33ft and under 65ft. best choice for vehicles of RV ,Trucks, Agricultural vehicles, Construction vehicles, Forklifts, Cranes.
