Waterproof IP69K Digital Rearview Mirror Metal Material RV Dash Cam
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX11G9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Material: | Metal | Brand: | TX |
|---|---|---|---|
| Transmission Power: | 26dB | Operating Temperature: | -20℃--70℃,RH85% MAX |
| Storage Temperature: | -30℃--80℃,RH85% MAX | Camera Weight: | 320g |
| Receiver Weight: | 185g | Waterproof Rating Level: | IP69K |
| IR Control: | SMART IR-CUT 650nm Day/850nm Night Auto | Pixel: | 1080P |
| High Light: | IP69K Digital Rearview Mirror,26dB Digital Rearview Mirror,IP69K RV Dash Cam |
||
Product Description
Waterproof IP69K Digital Rearview Mirror Metal Material RV Dash Cam
Digital Rearview Mirror 1080P Transmitter Car Charger Receiver Dash Cam For RV
Specification:
Camera
| Viewing Angle | 120° |
| Size | 78*64*50mm |
| Image Device | 1/2.7" COMS (HD) |
| Waterproof rating level | IP69k |
| Transmission Distance(barrier free) | 1650ft |
| Night Vision Distance | 33ft |
| Latency | less than 200ms |
| Power Supply | DC 12-32V |
| Power Consumption | 150mA/12V |
| IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -30°C~+80°C |
Receiver
| Operation Frequency | 2.4GHz--2.4835GHz |
| Transmission Power | 23dB |
| RX Sensitivity | -85dB |
| RF Bit Rate | 12Mbps |
| Spread Spectrum | FHSS |
| Video output format | 1080p |
| Coding Decompression method | H.264 |
| Power Supply | DC 10-30V |
| Operating Temperature | -20℃--70℃,RH85% MAX |
| Storage Temperature | -30℃--80℃,RH85% MAX |
| Size | 92x68x43mm |
| Weight | 185g |

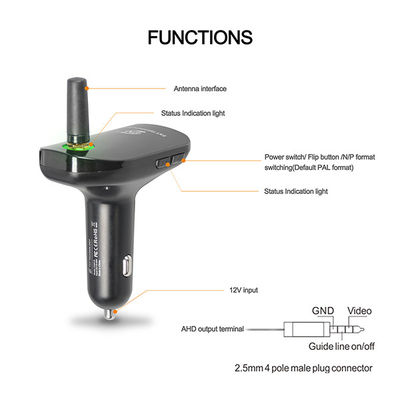

Features:
1. First item AHD digital wireless car-charger design rear pull(Supporting streaming media rearview mirror DVR use)
2. Car charger integrated design, camera built-in 2.4GHz transmitter.
3. 120 degree full-glass wide angle lens, 200W(1080P) Pixel sensor.
4. Be of super night vision, by 11-LEDs with smart IR-cut function, 33ft night vision range really excellent for night driving.
5. Car charger receiver function: Trigger the rearview mirror reversing line. Spin, Pair, Power on/off, N/P Switch, Factory resetting
6. USB 5V Power supply output(Load design) with 3.5M data line, apply to different vehicles for wiring.
7. Combine content:AHD Car charger transmitter and receiver(FX909T+FX901R)
8. Apply to Vehicles: Trucks, Van, Agricultural vehicles, Construction vehicles, RV, RV Trailer
Install the camera
1. Choose the location to fix the camera.
2. If necessary, drill holes and screws to fix and thread in order to insert the camera cable into the vehicle.
3. Find the positive and negative poles of the vehicle power supply DC12/24V,carefully strip the wire, then connect the red positive wire of the camera able to the positive pole of the vehicle power supply, and then connect the black wire of the camera to the negative pole of the vehicle power supply. After the connection is firm, wrap it with tape, pay attention to waterproof.
4. After all the cables are connected, power on for a temporary test, and then do the follow-up work after confirming the normal work.
