IP69K Waterproof RV Rear View Camera Wireless Signal System With 2 Cameras

IP69K Waterproof RV Rear View Camera Wireless Signal System With 2 Cameras

Product Details:

Place of Origin: China
Brand Name: TX
Certification: FCC CE ROHS
Model Number: FX12F9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: color box
Delivery Time: 5-8 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

MOQ: 1 Set Transmission Distance(barrier Free): 1650ft
Material: Metal Power Supply: DC+9V~+30V
Operating Temperature: ﹣20℃~+70℃ Storage Temperature: -30℃~+80℃
Viewing Angle: 160° Part Number: FX12F9
High Light:

IP69K Waterproof RV Rear View Camera

,

160 degree RV Rear View Camera

,

Metal RV Wireless Backup Camera

Product Description

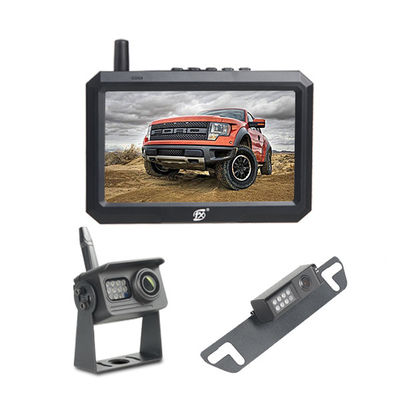

IP69K Waterproof RV Rear View Camera Wireless Signal System With 2 Cameras





Specification:



Monitor



LCD Size: 5 Inch Color Monitor
Resolution: 800 x 3(RGB)x 480
Brightness: 1000 cd/m
TV System: PAL/NTSC
Transmitted Power: 24±1dBm@Max
Operating Frequency: 2.4GHz~2.4835GHz
RX Sensitivity -85dBm@10%PER
Spread Spectrum FHSS
Video Compression H.264
Latency 160ms
Transmitting Distance 984ft line of sight
TF Card Min.8G Max.128G
Power Supply: DC+12V~+24V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃
Size 132.5x89.5x22.5mm



FX909T Camera



Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC 12-32V
Power Consumption 150mA/12V
Transmission Power 26dB
Spread Spectrum FHSS
Minimum Illumination 0Lux



FX922T Camera



Image Sensor 1/2.7’’COMS HD
Viewing Angle 160°
White Balance Auto
Operation Frequency 2.4GHz--2.4835GHz
Transmission Distance(barrier free) 300m(984ft)
Transmission Power 23dB
Latency Less 200ms
Spread Spectrum FHSS
RF Bit Rate 12Mbps
Minimum Illumination 0Lux
Night vision distance 4-5m
Power supply DC 10-18V
Waterproof rating IP69K
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 85x28x27.5mm
Weight 90g



Features:



1. First item 5 Inch 720P Dual-channel digital high-definition wireless DVR set.

2. Resolution of monitor is 800*480,brightness is 1000cd/m2.1000cd/m2 High brightness monitor enables an optimal vision even facing direct sunlight.

3. 720P H.264 HD DVR Recording,support the video playback online.Built-in DVR,support TF Card, the max memory is 128G.

4. The multi view screen is customizable,you can switch Channel to get specific camera paired and view a single camera vision, or 2, 3, 4 cameras vision on the screen.

5. Recommend to install on front and back side of vehicle or side door of RV,adjustable reversing line.

6. 120º Wide angle full glass lens,200W(1080P) Pixel sensor,IP69K Waterproof.

7. The FX922T camera with 160 degree big viewing angle,can be used for reversing and driving.

8. FX922T :Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.Size:85x28x27.5mm.



Warranty and service:



You (as the end user) get a 12-month guarantee from the date of purchase.

During the warranty period, if there is damage, repair or other problems, please contact the seller or qualified experts.

General warranties apply to defects in manufacture and materials. Please return the defective product to the seller.

To quickly process your warranty claim, you need to provide: A copy of the receipt showing the purchase date. Cause of claim (description of defect).

Any questions about this product please contact us at any time.
