Product Details:

Place of Origin: China
Brand Name: TX
Certification: FCC CE ROHS
Model Number: FX12F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: color box
Delivery Time: 5-8 days
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

Viewing Angle: 160° TF Card: Min.8G Max.128G
Transmitted Power:: 24±1dBm@Max Spread Spectrum: FHSS
Screen Size: 5 Inch Color Screen Operating Temperature: -20℃--70℃,RH85% MAX
Storage Temperature: -30℃--80℃,RH85% MAX Power Supply: DC10-18V
High Light:

300m Wireless Backup Cameras

,

IPS Monitor Wireless Backup Cameras

Product Description

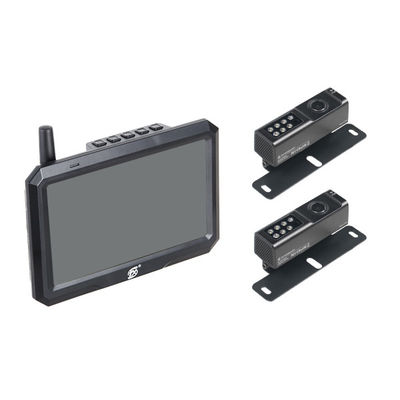

5 Inch IPS Monitor 300m Wireless Black color Backup Camera Support 2 Channels





Specification:



Monitor



LCD Size: 5 Inch Color Monitor
Resolution: 800 x 3(RGB)x 480
Brightness: 1000 cd/m
TV System: PAL/NTSC
Transmitted Power: 24±1dBm@Max
Operating Frequency: 2.4GHz~2.4835GHz
RX Sensitivity -85dBm@10%PER
Spread Spectrum FHSS
Video Compression H.264
Latency 160ms
Transmitting Distance 984ft line of sight
TF Card Min.8G Max.128G
Power Supply: DC+12V~+24V
Operating temperature: -20℃~+70℃
Storage temperature: -30℃~+80℃
Size 132.5x89.5x22.5mm



Camera



Image Sensor 1/2.7’’COMS HD
Viewing Angle 160°
AGC Auto
BLC Auto
White Balance Auto
Operation Frequency 2.4GHz--2.4835GHz
Transmission Distance(barrier free) 300m(984ft)
Transmission Power 23dB
Latency Less 200ms
Spread Spectrum FHSS
RF Bit Rate 12Mbps
Minimum Illumination 0Lux
Night vision distance 4-5m
Power supply DC 10-18V
Waterproof rating IP69K
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Size 85x28x27.5mm
Weight 90g



Features:



1. Transmission power is 23DBM,camera built-in antenna.

2. 160 degree with full-glass wide angle lens, 2 mega of Pixel sensor,

3. IP69K waterproof level,also can withstand extreme temperatures from -20°C~+70°C. No more lens water or fog problems.

4. Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.

5. Product content: One monitor with two cameras(FX922T*2+FX509R)

6. All certificates are available,such as CE,FCC,ROHS.



Application:



The best choices of backup camera system for mini car, pickup, SUV,RV, Trailer RV.and so on with super night vision.



Notices:

  • Please use this product within the specified voltage range.
  • Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.
  • If smoke or burning smell is detected, please disconnect the power immediately.
  • Please wrap the cable with tape when connecting it.
  • Please fix the product firmly before use.
  • If you do not understand the installation process, please consult professionals.
