Black Wireless Rear View Camera 5 Inch 1080P Color Monitor DVR System
Product Details:
Place of Origin: | China |
Brand Name: | TX |
Certification: | FCC CE ROHS |
Model Number: | FX11F9 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | negotiable |
Packaging Details: | color box |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 1000pcs/week |
Detail Information |
|||
Part Number: | FX11F9 | LCD Size: | 5 Inch Color Monitor |
---|---|---|---|
Brightness: | 1000 Cd/m² | Transmitted Power: | 24±1dBm@Max |
Power Supply: | DC+12V~+24V | Operating Temperature: | -20°C~+70°C |
Storage Temperature: | -30℃~+80℃ | Monitor Size: | 132.5x89.5x22.5mm |
High Light: | IP69K Black wireless rear view camera,FCC waterproof wireless rear view camera,FHSS wireless rear view camera system |
Product Description
5 Inch Wireless 1080P Black Rearview Cameras Monitor DVR System
Specification
Monitor
LCD Size: | 5 Inch Color Monitor |
Resolution: | 800 x 3(RGB)x 480 |
Brightness: | 1000 cd/m |
TV System: | PAL/NTSC |
Transmitted Power: | 24±1dBm@Max |
Operating Frequency: | 2.4GHz~2.4835GHz |
RX Sensitivity | -85dBm@10%PER |
Spread Spectrum | FHSS |
Video Compression | H.264 |
Latency | 160ms |
Transmitting Distance | 984ft line of sight |
TF Card | Min.8G Max.128G |
Power Supply: | DC+12V~+24V |
Operating temperature: | -20℃~+70℃ |
Storage temperature: | -30℃~+80℃ |
Size | 132.5x89.5x22.5mm |
Camera
Viewing Angle | 120° |
Size | 78*64*50mm |
Image Device | 1/2.7" COMS (HD) |
Waterproof rating level | IP69k |
Transmission Distance(barrier free) | 1650ft |
Night Vision Distance | 33ft |
Latency | less than 200ms |
Power Supply | DC 12-32V |
Power Consumption | 150mA/12V |
IR Control | Smart IR-CUT 650nm Day/850nm Night Auto |
Operating Temperature | -20°C~+70°C |
Storage Temperature | -30°C~+80°C |
Features:
1. First item 5 Inch 720P digital high-definition wireless DVR set
2. Monitor come up with 800*480 resolution, and Brightness is 1000cd of per meter.
3. 720P HD loop recording image, it can support video playback online.

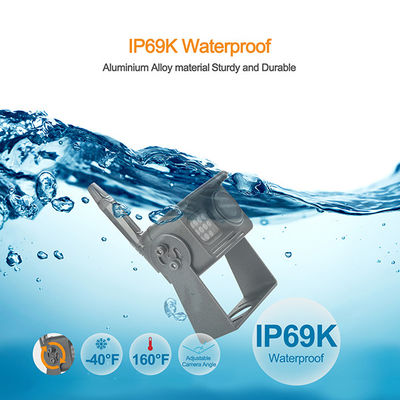

4. Camera with 120º Wide angle full glass lens,2 mega(1080P) of pixel sensor, IP69K of waterproof rating level.no need to worry driving in rainy day.
5. Up to 1650ft transmission distances at open spaces.suitabe for the vehicle which length is under 65ft.
6. Combine content:One monitor with 2 cameras(FX922T+FX909T+FX509R)
7. Monitor has variety of display way: Mirror, normal image and up, down, left, right image flip for more safe parking.
8. Apply to vehicles:Van,RV, Trailer RV,Shool Bus,Truck etc.
