RV 1080P 5 Inch IPS Monitor Wireless Backup Cameras Support 2 Channel
Product Details:
| Place of Origin: | China |
| Brand Name: | TX |
| Certification: | FCC CE ROHS |
| Model Number: | FX12F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | color box |
| Delivery Time: | 5-8 days |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T |
| Supply Ability: | 1000pcs/week |
|
Detail Information |
|||
| Viewing Angle: | 120° | Waterproof Rating Level: | IP69K |
|---|---|---|---|
| Transmission Distance(barrier Free): | 1650ft | Latency: | Less Than 200ms |
| Screen Size: | 5 Inch Color Screen | Operating Temperature: | -20℃--70℃，RH85% MAX |
| Storage Temperature: | -30℃--80℃,RH85% MAX | Minimum Illumination: | 0Lux |
| High Light: | ROHS Wireless Backup Cameras,FCC Wireless Backup Cameras,ROHS Wireless Car Backup Camera |
||
Product Description

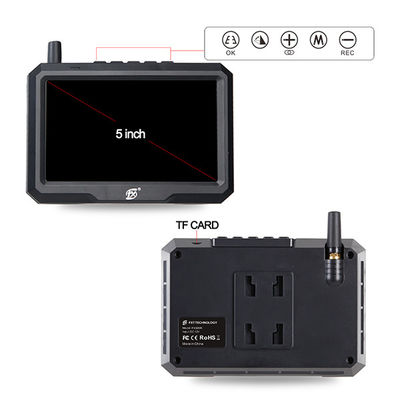

RV 1080P 5 Inch IPS Monitor Wireless Backup Cameras Support 2 Channel
RV Wireless Backup Cameras 1080P Resolution 5 Inch IPS Monitor Support 2 Channel
Specification:
Monitor
| LCD Size: | 5 Inch Color Monitor |
| Resolution: | 800 x 3(RGB)x 480 |
| Brightness: | 1000 cd/m |
| TV System: | PAL/NTSC |
| Transmitted Power: | 24±1dBm@Max |
| Operating Frequency: | 2.4GHz~2.4835GHz |
| RX Sensitivity | -85dBm@10%PER |
| Spread Spectrum | FHSS |
| Video Compression | H.264 |
| Latency | 160ms |
| Transmitting Distance | 984ft line of sight |
| TF Card | Min.8G Max.128G |
| Power Supply: | DC+12V~+24V |
| Operating temperature: | -20℃~+70℃ |
| Storage temperature: | -30℃~+80℃ |
| Size | 132.5x89.5x22.5mm |
Camera
Image Sensor | 1/2.7’’COMS HD |
Viewing Angle | 160° |
AGC | Auto |
BLC | Auto |
White Balance | Auto |
Operation Frequency | 2.4GHz--2.4835GHz |
Transmission Distance(barrier free) | 300m(984ft) |
Transmission Power | 23dB |
Latency | Less 200ms |
Spread Spectrum | FHSS |
RF Bit Rate | 12Mbps |
Minimum Illumination | 0Lux |
Night vision distance | 4-5m |
Power supply | DC 10-18V |
Waterproof rating | IP69K |
Operating Temperature | -20℃--70℃,RH85% MAX |
Storage Temperature | -30℃--80℃,RH85% MAX |
Size | 85x28x27.5mm |
Weight | 90g |
Features:
1. First 5 Inch 720P Dual-channel digital high-definition wireless DVR set
2. HD Resolution of monitor is 800*480,brightness is 1000cd/M,make night vision more easy observation and display.
3. 720P H.264 HD DVR Recording,support playback online.make sure have evidence to follow.
4. Transmission power is 23DBM,camera built-in antenna.super wireless signal system.
5. 120 degree full-glass wide angle lens, 200W(1080P) Pixel sensor, IP69K waterproof.anti-fog, dust-proof, scratch-proof.
6. Smart auto photosensitive and light complement ,6pcs highlight LED light help driving at night.
Application:
The best choices of backup camera system for mini car, pickup, SUV,RV, Trailer RV.and so on with super night vision.
Service:
1. Efficient after-sales service, provide solutions for your problems within 24 hours;
2. OEM&ODM: we can help you produce all customized products;
3. Protection of your design and all your private information;
4. Quality stability: we can provide certificates of products such as CE,FCC,ROHS;
5. Convenient payment methods: Paypal T/T;
