• Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen
Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen

Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen

Product Details:

Place of Origin: China
Brand Name: TX
Certification: CE,FCC,ROHS
Model Number: FX11A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: color box
Delivery Time: 5-8 days
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 1000pcs/week
Get Best Price Contact Now

Detail Information

Screen Size: 7 Inch Color: Orange And Black
Type: Reverse Camera Viewing Angle: 120°
Video Format: MP4 Resolution: 1024 X 3(RGB) X 600
Whatproof Level: IP69K Power Supply: DC 12-32V
High Light:

IP69K Night Vision Backup Camera System


DC32V Truck Backup Cameras


IP69K Truck Backup Cameras

Product Description

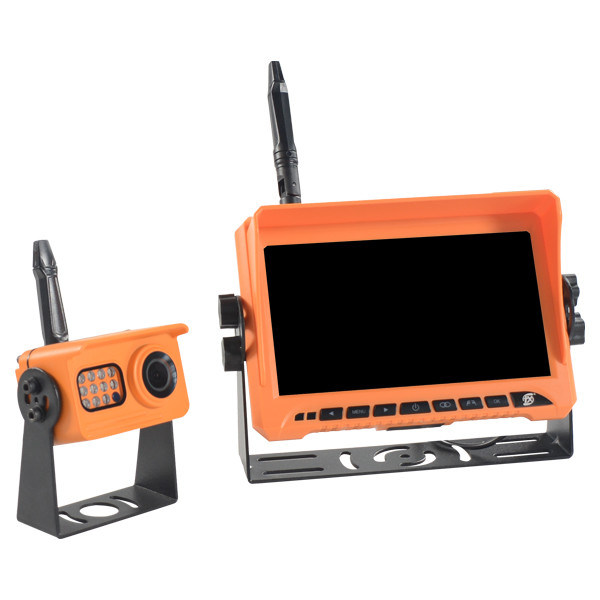

Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen


7 Inch IPS Screen Truck Wireless Rearview IR Night Vision Backup Camera System




1. 7 inch RV 720P digital high-definition wireless DVR set

2. Support multi-channel camera display, can support up to 4 channel split screen

3. 7 inch IPS screen 1024*600 resolution 900cd/ m²,HD highlight to make night vision more easy observation and display.

4. 720P H.264 HD DVR Video recording ,support playback online,have evidence to check to make sure driving safety.

5. Self-defining reversing line setting,make the sense of distance approach reality.

6. Wireless signal open distance can reach up to 1650ft(500m), Transmit power is 26DBM

7. Camera use Structural waterproofing process, waterproof IP69K, waterproof droplets, anti-fog, dust-proof, scratch-proof.

8. 120 degree full-glass wide angle lens, 200W(1080P) Pixel Photosensitive element(Sensor), Super strong 11pcs high power infrared light. IR-CUT smart switch night vision, night vision distances can reach up to 10m.

9. Monitor's Outer appearance use Innovative and unique model, and the key board use a light-transmitting design to make the touch more accurate at night.

10. Orange color, unique appearance color, which improves brand recognition.






Screen Size 7 inch Color Monitor
Operating Frequency 2.4GHz~2.4835GHz
Resolution 1024 x 3(RGB) x 600
Video Format MP4
Built-in DVR recording Holding up to 16G/32G/64G/128G SD Cards
Brightness 900 cd/m²
Channel 4 channels Max
Transmission Distance 1650ft
Power consumption Max:6W
Power Supply DC 12-24V
Operating temperature -20℃--70℃
Storage temperature -30℃--80℃
Outer Dimension 184mm(W)X129mm(H)X26mm(D)



Viewing Angle 120°
Image Device 1/2.7" COMS (HD)
IR Control SMART IR-CUT 650nm Day/850nm Night Auto
Waterproof level IP69k
Transmission Distance(barrier free) 1650ft
Night Vision Distance 33ft
Latency less than 200ms
Power Supply DC 12-32V
Power Consumption 150mA/12V
Transmission Power 26dB
Operating Temperature -20℃--70℃,RH85% MAX
Storage Temperature -30℃--80℃,RH85% MAX
Spread Spectrum FHSS
Minimum Illumination 0Lux



  •  Please use this product within the specified voltage range.
  •  Pay attention to the positive poles of the power cord. If the positive and negative sides are connected in reverse, it may burn out.
  •  If smoke or burning smell is detected, please disconnect the power immediately.
  • Please wrap the cable with tape when connecting it.
  • Please fix the product firmly before use.
  • If you do not understand the installation process, please consult professionals.




       Backup Camera System Widely used in RVs,Trucks,Trailers,5th Wheels IR Night Vision and so on.



Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen 0Truck IR IP69K Night Vision Backup Camera System 7 Inch IPS Screen 1


Competitive advantage:


1. Stable quality(CE,FCC,ROHS)
2. Most competitive price
3. On time delivery
4. All products must test one by one waterproof resistance and high/low temperature resistance
5. Warranty: 12 months
6. OEM,ODM welcome




Q1. What is the payment terms?

A: T/T,L/C at sight,Paypal.


Q2. What is the warranty time?

A:Usually 12 months from the date of purchase, it also depends on the type of the products.


Q3. What is the lead time?

A: Usually 3~7 days for sample order, for bulk orders, it depends on the order quantity.


Q4. How to charge the freight?

A: The quotation usually doesn’t include the freight; customer can choose freight prepaid or freight collect.
